A.7.2
Glas- und Metallröhren
Glass and Metal Tubes

Kolben - Bulb Material Form - Shape Durchmesser - Diameter

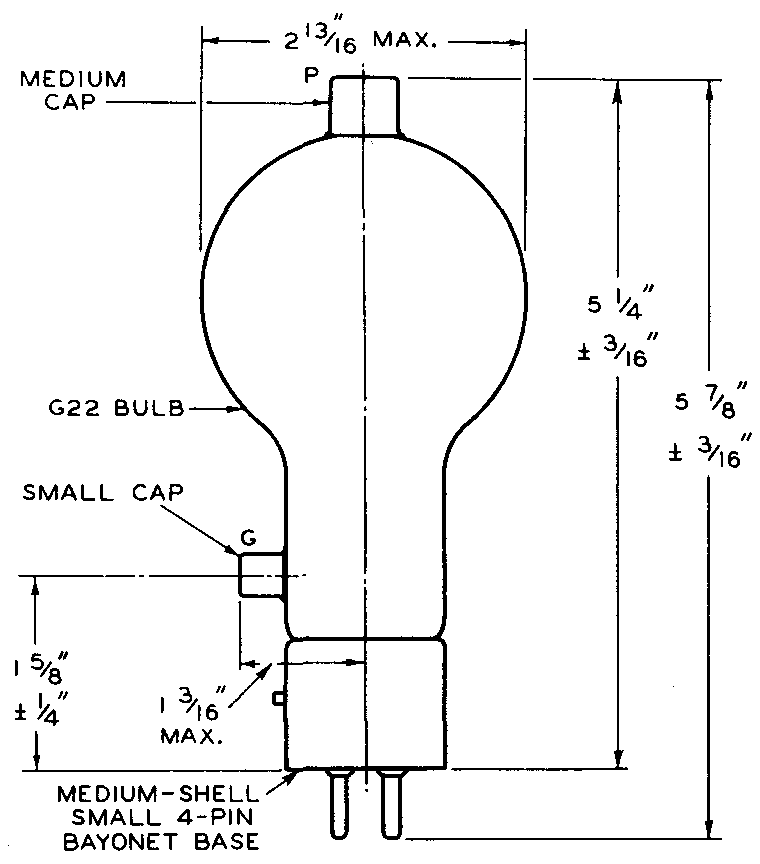

G22 G22808 Glas - Glass Kugelförmig - Globe 71.4 mm - 2.813"

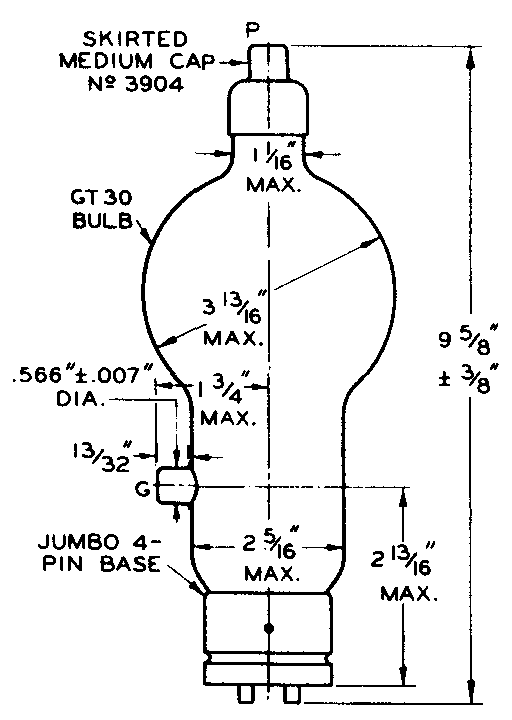

GT30 GT30806 Glas - Glass Zylindrisch mit Kugel
Globe and Tubular
96.8 mm - 3.813"

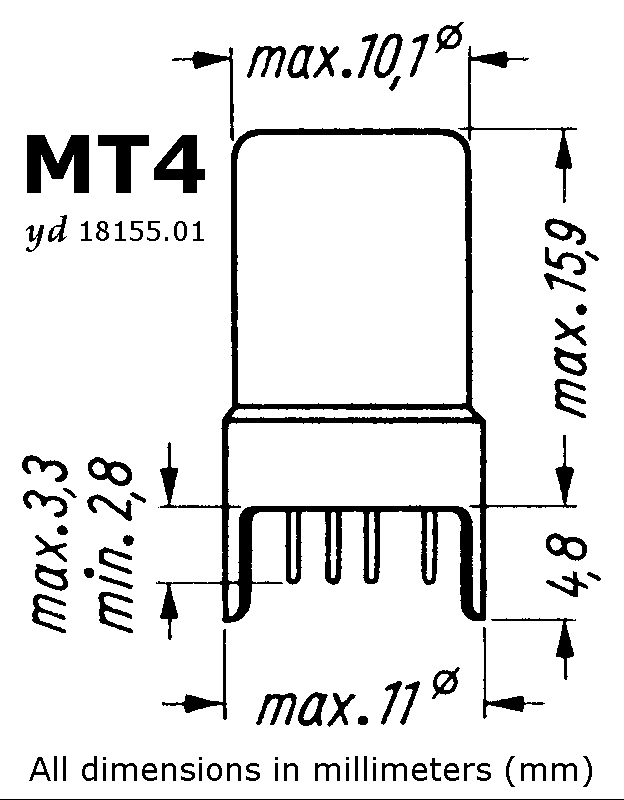

MT4 MT4 Metall - Metal Zylindrisch - Tubular 11.0 mm - 0.435" (Nuvistor)

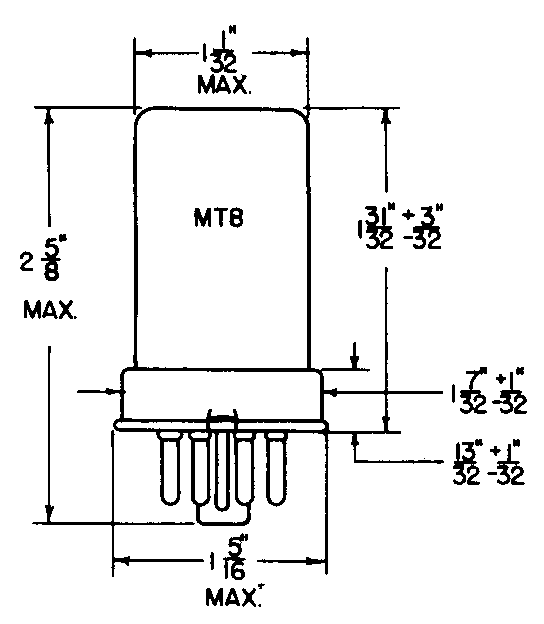

MT8 MT8 Metall - Metal Zylindrisch - Tubular 26.2 mm - 1.031"
MT10   Metall - Metal Zylindrisch - Tubular 33.3 mm - 1.313"

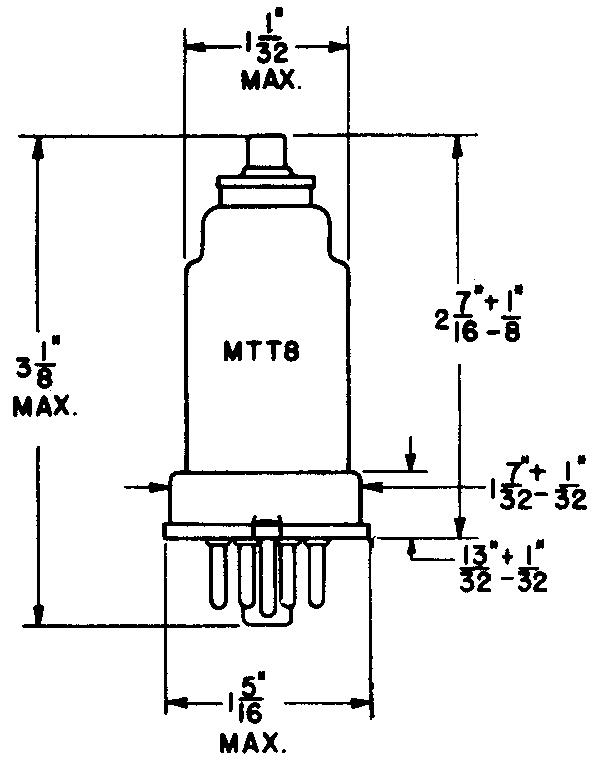

MTT8 MTT8 Metall - Metal Doppelt zylindrisch
Double-Tubular
26.2 mm - 1.031"
S12   Glas - Glass Tropfenförmig - Straight Side 39.7 mm - 1.563"
S14   Glas - Glass Tropfenförmig - Straight Side 46.0 mm - 1.813"
S17   Glas - Glass Tropfenförmig - Straight Side 55.6 mm - 2.188"
S19   Glas - Glass Tropfenförmig - Straight Side 61.9 mm - 2.438"
S21   Glas - Glass Tropfenförmig - Straight Side 68.3 mm - 2.688"
ST12   Glas - Glass Domkolben - Shoulder Type 39.7 mm - 1.563"

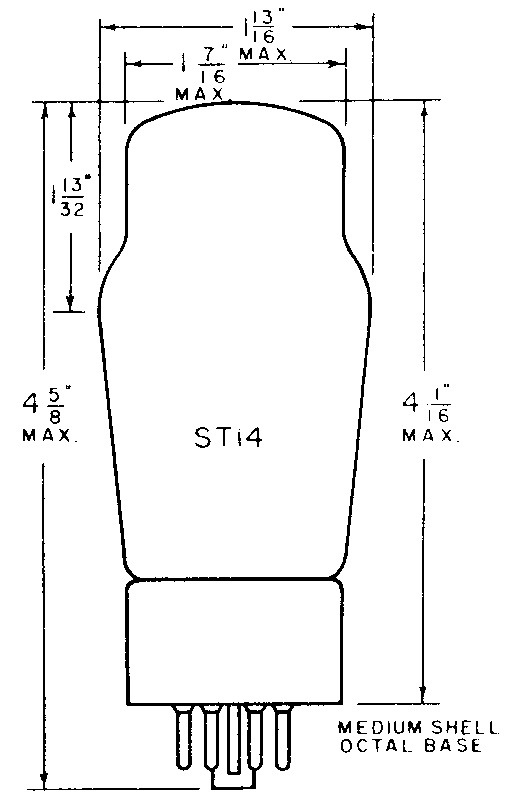

ST14 ST14 Glas - Glass Domkolben - Shoulder Type 46.0 mm - 1.813"

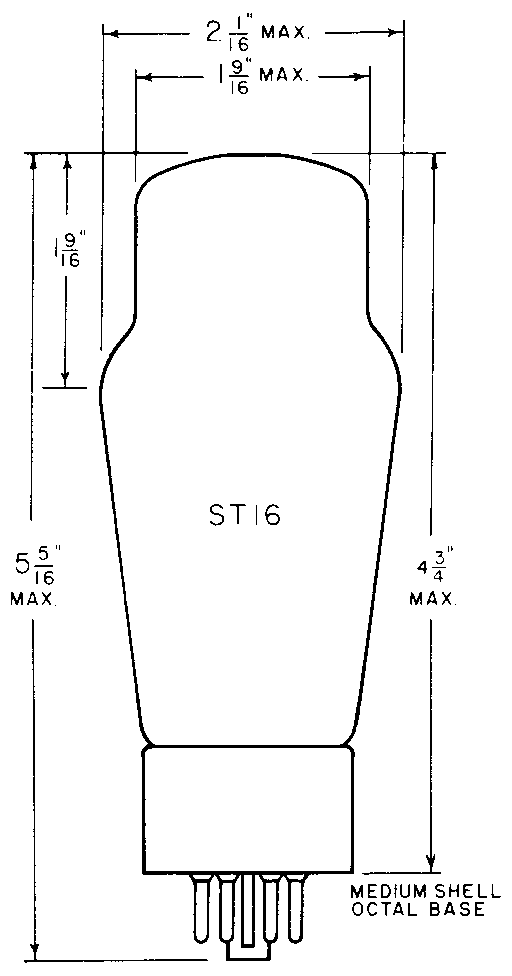

ST16 ST16 Glas - Glass Domkolben - Shoulder Type 52.4 mm - 2.063"
ST19   Glas - Glass Domkolben - Shoulder Type 61.9 mm - 2.438"
ST23   Glas - Glass Domkolben - Shoulder Type 76.2 mm - 3.000"
T1½X2   Glas - Glass Zylindrisch - Tubular
(SubMiniatur)
6.0 x 7.4 mm - 0.235 x 0.290"
T2X3   Glas - Glass Zylindrisch - Tubular
(SubMiniatur)
7.2 x 10.2 mm - 0.285 x 0.400"
T3   Glas - Glass Zylindrisch - Tubular
(SubMiniatur)
9.7 ... 10.16 mm
0.383 ... 0.400"
T5½   Glas - Glass Zylindrisch - Tubular 19.1 mm - 0.750"
T6½   Glas - Glass Zylindrisch - Tubular 22.2 mm - 0.875"
T8   Glas - Glass Zylindrisch - Tubular 27.0 mm - 1.063"
T9   Glas - Glass Zylindrisch - Tubular 28.6 mm - 1.125" (B9A)
30.2 mm - 1.188" (B8G, K8A etc.)
T10   Glas - Glass Zylindrisch - Tubular 33.3 mm - 1.311"
T11 T115881 Glas - Glass Zylindrisch - Tubular 36.5 mm - 1.438"
T12   Glas - Glass Zylindrisch - Tubular 39.7 mm - 1.563"
T14   Glas - Glass Zylindrisch - Tubular 46.0 mm - 1.813"
T16   Glas - Glass Zylindrisch - Tubular 52.4 mm - 2.063"
T18   Glas - Glass Zylindrisch - Tubular 58.7 mm - 2.313"
T20   Glas - Glass Zylindrisch - Tubular 65.1 mm - 2.563"
T21   Glas - Glass Zylindrisch - Tubular 68.3 mm - 2.688"
T24   Glas - Glass Zylindrisch - Tubular 98.4 mm - 3.875"
TT18   Glas - Glass Doppelt zylindrisch
Double-Tubular
58.9 mm - 2.320"

Kolben - Bulb Grösse
Size
EIA h1 (max)h2 (max)h3 (max)
Miniatur
Compactron
Compactron - Novar
T9 T12
T9 C38 9-56 38.1 mm - 1.500"
T9 C45 9-57 44.5 mm - 1.750"
T9 C51 9-58 50.8 mm - 2.000"
T9 C57 9-59 57.2 mm - 2.250"
T9 C60 9-85 60.7 mm - 2.390" 69.3 mm - 2.730"
T9 C61 9-85 60.7 mm - 2.390" 72.6 mm - 2.860"
T9
T12
C64 9-60
12-74
63.5 mm - 2.500"
T9 C69 12-99 68.6 mm - 2.700"
T12 C70 12-96 69.9 mm - 2.750"
T9
T12
C76 9-111 76.2 mm - 3.000"
T12 C81 12-70     80.5 mm - 3.170"
T12 C83 12-79     82.6 mm - 3.250"
T9 C89 9-101
9-117
    88.9 mm - 3.500"
T12 C95 12-116     95.3 mm - 3.750"
T12 C98   98.4 mm - 3.875"
T12 C102 12-117     101.6 mm - 4.000"
T12 C108 12-118     108.0 mm - 4.250"
T12 C114 12-119     114.3 mm - 4.500"
T12 C116 -     116.1 mm - 4.570"

Kolben - Bulb Grösse
Size
EIA h1 (max)h3 (typ)
Octal ST
Octal ST
ST14 ST16
ST14 D103   103.2 mm - 4.063"
ST16 D106   106.4 mm - 4.188"
ST16 D121 16-3 120.7 mm - 4.750"

Kolben - Bulb Grösse
Size
EIA h1 (max)h3 (max)
Octal M
Octal Metal
MT8 MTT8 MT10
MT8 E30   30.2 mm - 1.188"
MT8
MTT8
E52 8-1
8-4
52.4 mm - 2.063" 65.1 mm - 2.563"
MT8 E68 8-6 68.3 mm - 2.688"
MT10 E95   95.3 mm - 3.750"

Kolben - Bulb Grösse
Size
EIA h1 (max)h3 (typ)
Octal GT
Octal GT
T9 T10 T11 T12
T9 K59   58.7 mm - 2.313"
T9 K62   61.9 mm - 2.438"
T9 K64   63.5 mm - 2.500"
T11 K65   65.1 mm - 2.563"
T9 K70 9-11
9-41
69.9 mm - 2.750"
T9 K71 9-13
9-42
71.4 mm - 2.813"
71.6 mm - 2.820"

T10 K72   72.0 mm - 2.835"
T9 K73 9-15
9-43
73.0 mm - 2.875"
T11 K74   73.8 mm - 2.906"
T9 K75     74.6 mm - 2.938"
T12 K79     79.4 mm - 3.125"
T9 K82 9-44 82.5 mm - 3.250"
T12 K83   83.3 mm - 3.281"
T12 K84   84.1 mm - 3.313"
T9 K85   85.5 mm - 3.366" 95.5 mm (max)
T9 K86   87.3 mm - 3.438"
T11 T12 K87   87.3 mm - 3.438"
T12 K89   89.0 mm - 3.500"
T12 K94   93.7 mm - 3.688"
T9 K98   98.0 mm - 3.858"
T12 K103 12-16 103.2 mm - 4.063"
T12 K106   106.4 mm - 4.188"
T12 K108     108.0 mm - 4.250"
T12 K113     113.0 mm - 4.450"
Loctal
Loctal
T9 L38 9-29 38.1 mm - 1.500"
T9 L44 9-32 44.5 mm - 1.750"
T9 L57 9-30 57.2 mm - 2.250"
T9 L66 9-31 66.7 mm - 2.625"
T9 L70 - 70 mm - 2.756"

Kolben - Bulb Grösse
Size
EIA h1 (typ)h2 (max)h3 (max)
Miniatur
Miniatur - T5½
M22   22.2 mm - 0.875" 31.8 mm - 1.250"
M28 5-1 28.6 mm - 1.125" 38.1 mm - 1.500" 42.8 mm
M38 5-2 38.1 mm - 1.500" 47.6 mm - 1.875" 52.3 mm
M44   44.5 mm 53.9 mm 58.7 mm
M47       61.9 mm - 2.438"
M50   50.8 mm - 2.000" 60.3 mm - 2.375" 65.0 mm
M57       73.0 mm - 2.875"
Miniatur
Noval - Dekal
T6½ T9
T6½ N28   28.6 mm - 1.125" 38.1 mm - 1.500" 42.8 mm
T6½ N34   34.2 mm 43.6 mm 48.4 mm
T6½ N40   39.7 mm - 1.563" 49.2 mm - 1.938" 53.9 mm
T9 N41   39.7 mm - 1.563" 49.2 mm - 1.938"
T6½ N45   45.3 mm - 1.781" 54.7 mm - 2.156" 59.5 mm
T6½ N50   50.8 mm - 2.000" 60.3 mm - 2.375" 65.0 mm
T6½ N54   54.0 mm - 2.125" 63.5 mm - 2.500"
T6½ N56   56.4 mm 65.8 mm 70.6 mm
T6½ N57   57.2 mm - 2.250" 66.5 mm - 2.620"
T6½ N62   61.9 mm - 2.438" 71.4 mm - 2.813" 76.2 mm
T6½ N66   66.7 mm 75.5 mm
T6½ N67   67.5 mm 76.9 mm 81.7 mm
Miniatur
Compactron
MagNoval
T9 T12
T9 P50   50.1 mm 62.5 mm 64.5 mm
T9 P53   53.0 mm 65.8 mm
T9 P56   56.1 mm 68.5 mm 70.5 mm
T9 P58   58.4 mm 69.4 mm
T9 P62   62.1 mm 74.5 mm 76.5 mm
T12 P64   63.6 mm 76.0 mm 78.5 mm
T9 P68   68.1 mm 80.5 mm 82.5 mm
T9 P71   71.4 mm (max)
T12 P73   73.1 mm 85.5 mm 87.5 mm
T9 P74   74.1 mm 86.5 mm 88.5 mm
T12 P76   76.0 mm (max)
T9 P80   80.1 mm 92.5 mm 94.5 mm
T9 P81       95.5 mm
T12 P83   82.6 mm 95.0 mm 97.5 mm
T9 P92   92.1 mm 104.5 mm 106.5 mm
T12 P102   101.6 mm 114.0 mm 116.5 mm
Rimlock
Rimlock - T6½
R44   44.5 mm 53 mm
R51   51.5 mm 60 mm
R60   60.5 mm 69 mm
R65   65.5 mm 74 mm
Miniatur
SubMiniatur
T3 U24   24.1 mm - 0.950" 31.8 mm - 1.250"
T3 U27   27.3 mm - 1.075" 34.9 mm - 1.375"
T3 U32   31.8 mm - 1.250" 38.1 mm - 1.500"
T3 U34     41.3 mm - 1.625"
T3 U37   36.8 mm - 1.450" 44.5 mm - 1.750"
T3 U43   43.2 mm - 1.700" 50.8 mm - 2.000"

Vorige Seite - Previous Page Seitenanfang - Top of Page Inhalt - Table of Contents Start - Top of Document Nächste Seite - Next Page
previous page next page previous/next

Copyright © 2017Franz Hamberger, Berlin, Germany
803

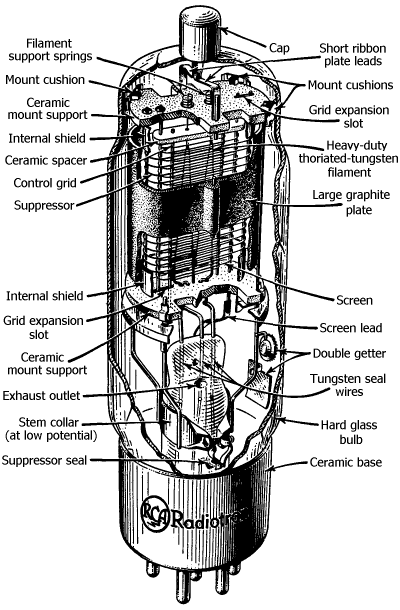

Structure of Transmitting Pentode   RCA - 803
